DESCRIPTION

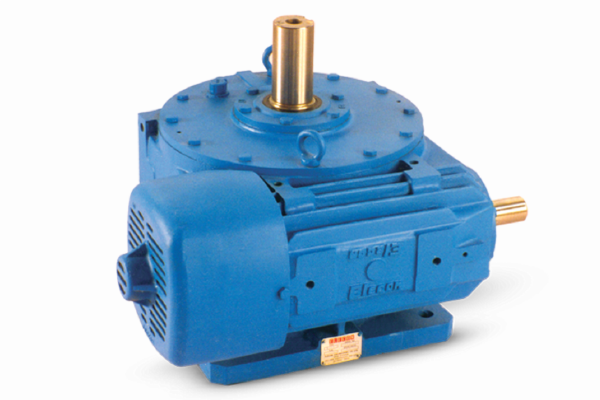

The Heavy Duty Stirrer unit is designed with an extended bearing housing to accommodate a bigger bottom bearing and a larger shaft size. This modification improves the unit's ability to handle the significant bending loads that occur during stirrer applications. The gear unit itself is compact and features a pivoted platform on top, allowing for convenient direct mounting of an electric motor using a belt tensioning device.
TECHNICAL SPECIFICATION
| Model & Type | SNU – CVDM |
| Sizes | 4, 5, 6 7, 8, 9, 10.5 |
| Model & Type | CVDM |
| Sizes | 10, 12, 14, 17 |
| Ratio | Min. 5:1 to Max. 70:1 |
| Power Capacity | 350 kW |
| Applications | Large-capacity chemical mixing |
APPLICATIONS
- Conveyors
- Raw Mill
- Coal Mill
- Nodulizer
- Elevator Drives
- Separator Drive
- Bulk Materials Handling
- Classifier
- Conveyor Drive
- Bucket
- Cane Carrier
INDUSTRY
- Cement Industry
- Power Industry
- Chemical Industry
- Materials Handling Industry
