Double Reduction Gear
DESCRIPTION
The ELECON Double Reduction Worm Gear Units are built by combining two single reduction worm gear units. The initial worm gear unit is designed to be mounted directly onto a standard single worm gear unit, which serves as the secondary stage. This arrangement results in a compact and strong gear unit suitable for machinery that operates at slow speeds. A variety of ratios ranging from 75:1 to 4900:1 are offered, making these gear units ideal for applications requiring high torque and low speeds. The worm gearing adheres to the specifications of BS-721.
TECHNICAL SPECIFICATION
Underdriven SNU-UD / SFUD Overdriven SNU-OD / SFOD Verticle output shaft SNU-VD / SFVD ( UP/down ) Hollow output shaft SNU-SMD /SSMD Sizes 1¾/30, 2¼ /40, 2¼ /50, 3/60, 3/70, 4/80, 4/90, 5/105 , 5/120 , 6/140 , 7/170 Ratio Min. 75:1 to Max 4900:1 Power Capacity 50 kW APPLICATIONS
- Conveyors
- Raw Mill
- Coal Mill
- Nodulizer
- Elevator Drives
- Separator Drive
- Bulk Materials Handling
INDUSTRY
- Cement Industry
- Sugar Industry
- Steel Industry
- Power Industry
- Plastic Industry
- Chemical Industry
- Palm Oil Industry
- Rubber Industry
- Paper Industry
-
Heavy Duty Stirrer Unit
DESCRIPTION
The Heavy Duty Stirrer unit is designed with an extended bearing housing to accommodate a bigger bottom bearing and a larger shaft size. This modification improves the unit's ability to handle the significant bending loads that occur during stirrer applications. The gear unit itself is compact and features a pivoted platform on top, allowing for convenient direct mounting of an electric motor using a belt tensioning device.
TECHNICAL SPECIFICATION
Model & Type SNU – CVDM Sizes 4, 5, 6 7, 8, 9, 10.5 Model & Type CVDM Sizes 10, 12, 14, 17 Ratio Min. 5:1 to Max. 70:1 Power Capacity 350 kW Applications Large-capacity chemical mixing APPLICATIONS
- Conveyors
- Raw Mill
- Coal Mill
- Nodulizer
- Elevator Drives
- Separator Drive
- Bulk Materials Handling
- Classifier
- Conveyor Drive
- Bucket
- Cane Carrier
INDUSTRY
- Cement Industry
- Power Industry
- Chemical Industry
- Materials Handling Industry
-

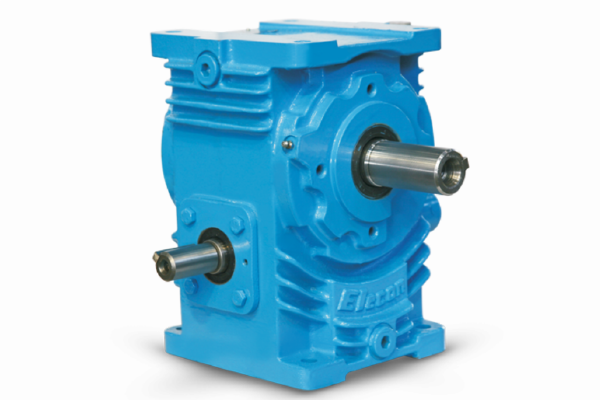

Worm Gear Small Series
DESCRIPTION
Underdriven SNU-U Overdriven SNU-O Verticle output shaft up/down SNU-V Hollow output shaft SNU-SM Sizes 1 5/8” to 3.54” Ratio Min. 5 : 1 to Max 70 : 1 Power Capacity 12.5 kW APPLICATIONS
- Conveyors
- Raw Mill
- Coal Mill
- Nodulizer
- Elevator Drives
- Separator Drive
- Bulk Materials Handling
INDUSTRY
- Cement Industry
- Sugar Industry
- Steel Industry
- Power Industry
- Plastic Industry
- Chemical Industry
- Palm Oil Industry
- Rubber Industry
- Paper Industry
