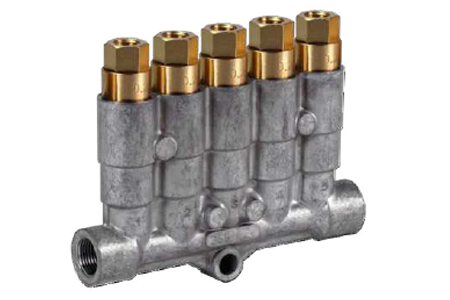

Series 350 single-line, pre-lubrication metering devices come in two, three, and five-port variants and are designed to be installed directly on the machine or system that requires lubrication. These metering devices were designed for use with single-line, centralized oil and fluid grease lubrication systems. By specifying the relevant order code, Series 350 metering devices can be supplied with main line fittings.
Features and Benefits
-
For use with distributor bodies having two, three, and five ports to match the number of lubrication points
-
Designed for installation directly on the machine/system requiring lubrication
-
Select push-in or screw-in type metering nipples for feed line connection with metering device bodies
-
Choose push-in or screw-in type mainline fittings with metering device bodies
-
Current metering nipples above 0,03 cm 3 are exchangeable to yield different output quantities
Applications
- Machine tools
- Printing machines
- Packaging industry
- Textile industry
- Agriculture
