High-Capacity Wind Turbine Gearbox
TECHNICAL SPECIFICATION
Features Combination of helical and planetary gears for higher power capacity Advantages Specially designed speed increaser for heavy-duty windmills Technical Specifications SB 370 / PAH 90 Product Application Wind Mill Range Custom built to client`s specifications & available up to 2 MW capacity INDUSTRY
- Power Industry
- Windmill
-
Medium Wind Turbine Gearbox

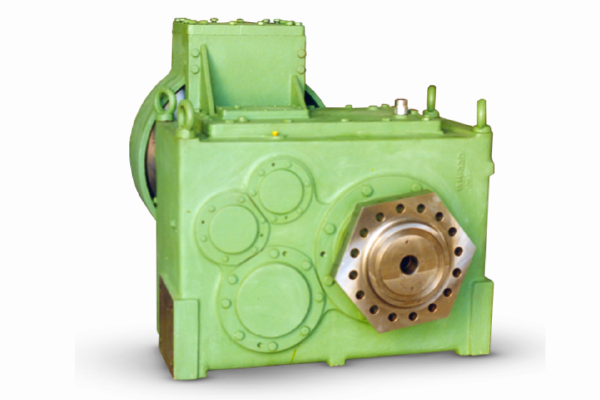

Elecon, in collaboration with Wind Master of Belgium, produces advanced wind turbine gearboxes that meet rigorous requirements. The SDNK 1400 gearbox has a unique design that not only supports the power generator and disc brake but also the wind turbine blades. This is achieved through a hexagonal flanged low-speed shaft. To fulfill this purpose, the gearbox case and adapter are specifically developed using FG 320 material.
The internals of this wind turbine gearbox have undergone carburization, hardening, grinding, and precise profile correction to optimize its performance for applications that require increased speed. The gear teeth and bearings are lubricated through a splash method.
The wind turbine gearbox is securely supported on the Nacelle through robust brackets and operates at a height of 40 meters above the ground. Additionally, the gearbox casing accommodates a hydraulic cylinder shaft for maneuvering the blade angle.
TECHNICAL SPECIFICATION
Wind Mill Gearbox SDNK 1400 Power 300 kW Turbine Shaft Speed 43 rpm Generator Shaft Speed 1512 rpm Speed increasing Ratio 1 / 35.1487 Weight 4000 kg. approx. Features Helical speed increaser gearbox suitable for up to 100 kW Wind Mill Advantages Specially designed as a speed increaser for windmills Technical Specifications Suitable for up to 350 kW power generation and ratio upto 1/40 Product Application Wind Mill for Wind Power Generation Range Wind Mill for Wind Power Generation
INDUSTRY
- Power Industry
- Windmill
-
Small and Medium Wind Turbine Gearboxes

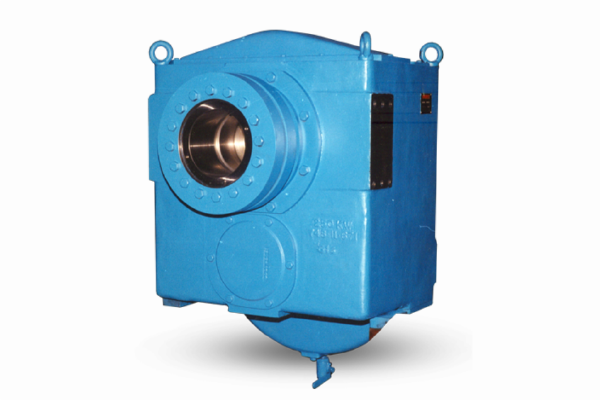

Elecon has created wind turbine gearboxes with varying capacities: 55 kW (SBH 410/S) and 250 kW (SBH 280/80). These gearboxes are positioned on a coaxial shaft, situated 40 meters above the ground. The internal components of the gearboxes have undergone carburization, hardening, grinding, and precise profile correction to ensure optimal performance for gear applications that increase speed.
These helical gearboxes are attached to the turbine shaft using a shrink disc, and both the gear teeth and bearings are lubricated through a bath/splash method.
TECHNICAL SPECIFICATION
Wind Mill Gearbox SBH 410/S SBH 280/80 Power 250 kW 55 kW Turbine Speed 41.5 rpm 58 rpm Generator Shaft Speed 1515.6 rpm 1031.2 rpm Speed increasing Ratio 1 / 36.521 1 / 17.778 Weight 1800 kg. approx. 675 kg. approx. INDUSTRY
- Power Industry
- Windmill
- High Capacity Wind Turbine
